Flowy — A motion field viewer

Description

Flowy provides a motion field viewer for 2D spatial representations.

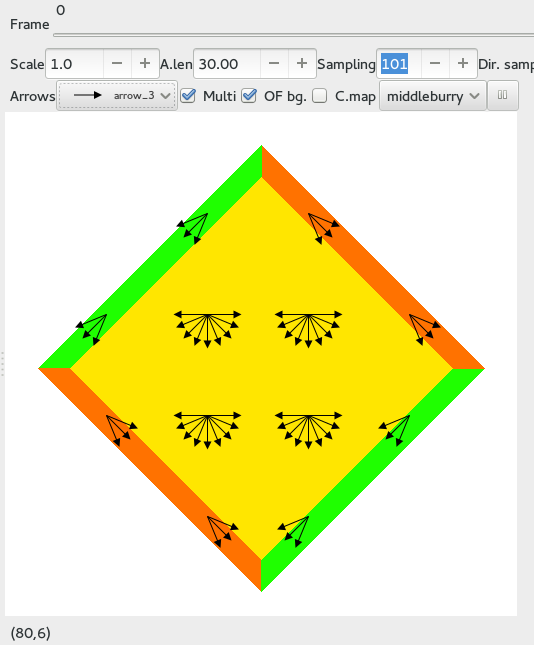

../_images/flowy-1.png

Dowload

You can browse the releases web directory to get the latest version.

Dependencies

The GTK+ library, in its third major version, as well as its associated Python bindings are required to run the software.

Data formats

Compatible motion arrays are stored as HDF5 datasets containing simple datasets of integer elements. Several formats are supported, each allows an optional temporal domain, which must be in the first dimension if present.

Optical flow

Shape

[time ×] 2 × height × width

In the optical flow format, compatible datasets must have three or four dimensions. The last three dimension respectively represent the motion vector, the height and the width of the optical flow. The first dimension should be equal to two, for the X and Y components of the motion vectors.

Motion field

Shape

[time ×] vdim × height × width

In the motion field format, the third to last dimension can be equal to (N*2+1)², where N is an integer, to represent grid velocities. Otherwise a specific velocity space must be given as command line parameter, or be present in the dataset attributes.

Direction field

Shape

[time ×] ndirs × height × width

In the direction field format, ndirs directions are assumed to regularly span the [0°,360°) range, unless a dataset attribute is present in the HDF5 file.
